Aprašymas

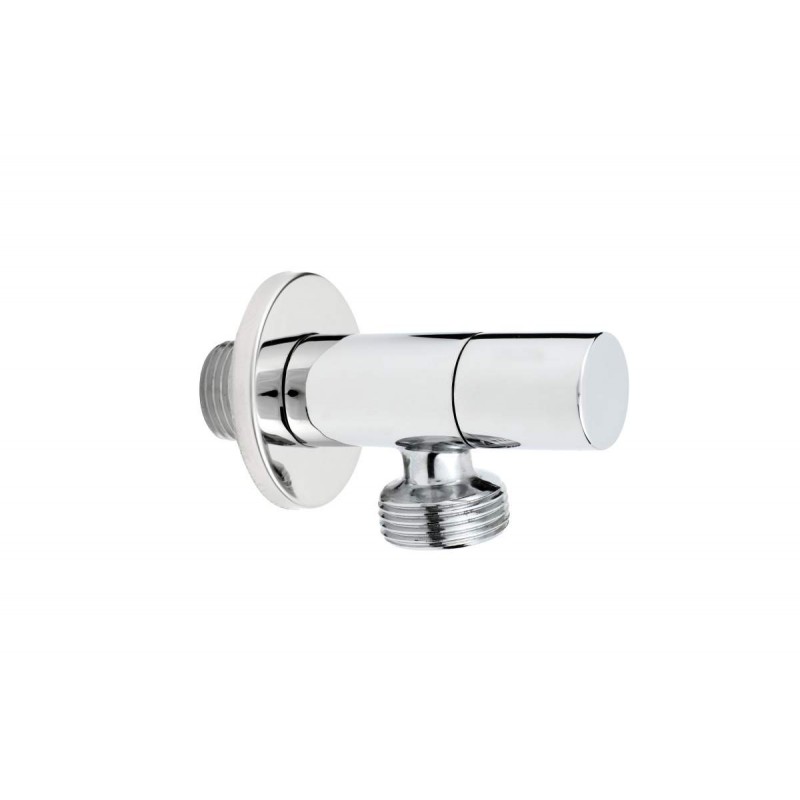

Destined for opening and closing a water flow in water supply systems.

Parameters:

– nominal pressure 10 bar
– maximum operating temperature 100⁰C
– working media: hot and cold water in water supply systems
– made of brass with a chrome coating
– a declaration of conformity is issued for all valves
– the valves have a hygienic certificate issued by the National Institute of Hygiene

2-year warranty

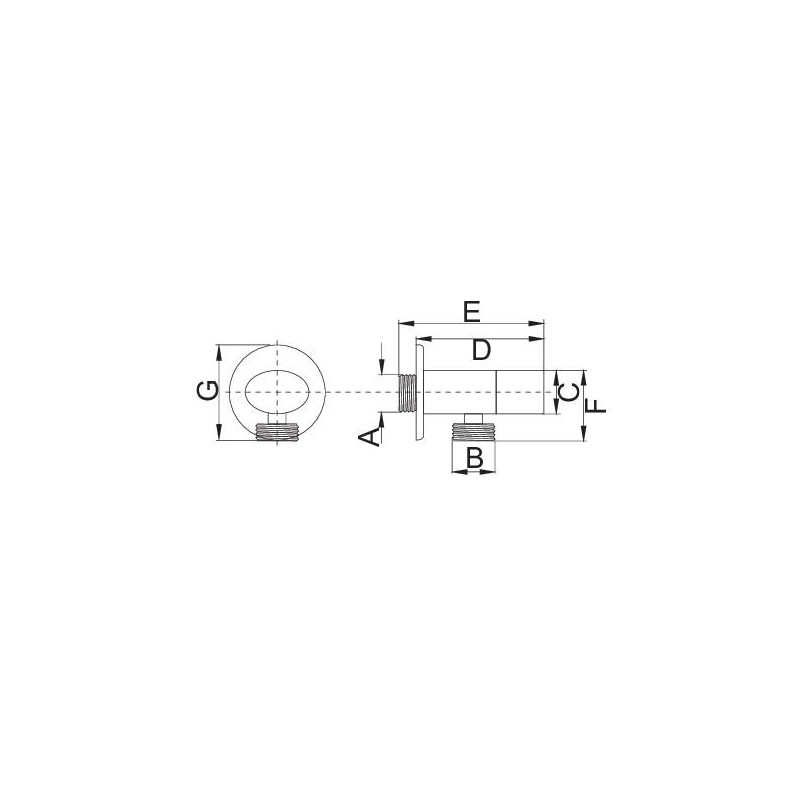

INDEX P [Mpa] A [inch] B [inch] C [mm] D [mm] E [mm] F [mm] G [mm] Size Collective packaging
[pcs]		 EAN code Waga netto
(kg)
ZK.C10O 1,0 G1/2 G3/8 23 55 75 39 48 1/2″x3/8″ 90 5900308742600   0,181
ZK.C15O 1,0 G1/2 G1/2 23 55 75 39 48 1/2″x1/2″ 90 5900308742587   0,185
ZK.C20O 1,0 G1/2 G3/4 23 55 75 39 48 1/2″x3/4″ 90 5900308742594   0,215
