Aprašymas

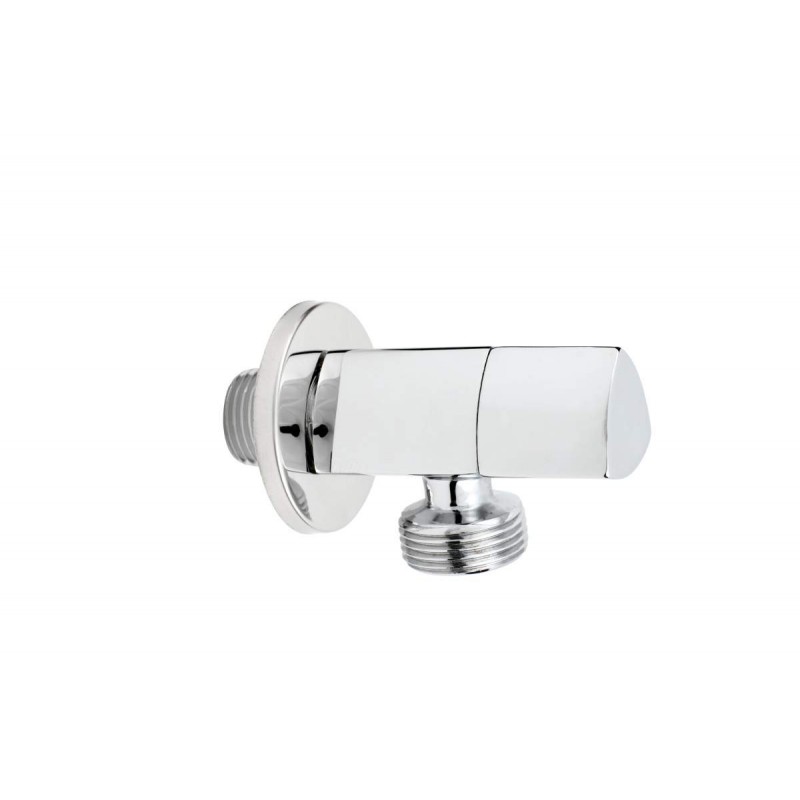

Destined for opening and closing a water flow in water supply systems.
Parameters:
– nominal pressure 10 bar
– maximum operating temperature 100⁰C
– working media: hot and cold water in water supply systems
– made of brass with a chrome coating
– a declaration of conformity is issued for all valves
– the valves have a hygienic certificate issued by the National Institute of Hygiene
2-year warranty

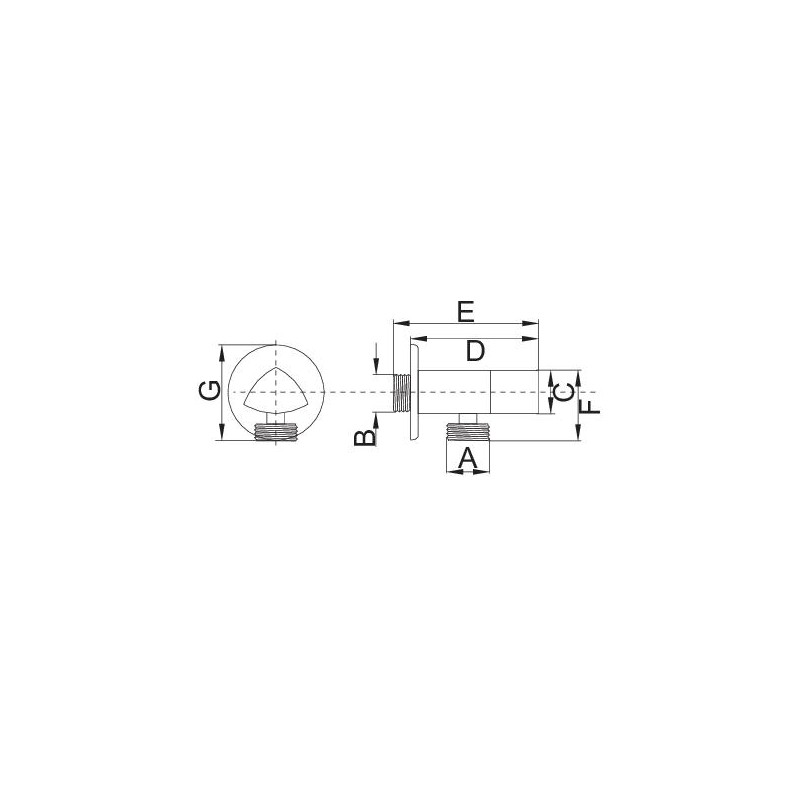

| INDEX | P [Mpa] |
A [inch] |
B [inch] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
G [mm] |
Size | Collective packaging [pcs] |
EAN code | Net weight (kg) |
| ZK.C10T | 1,0 | G3/8 | G1/2 | 26 | 66 | 85 | 44 | 48 | 1/2″x3/8″ | 90 | 5900308742631 | 0,186 |
| ZK.C15T | 1,0 | G1/2 | G1/2 | 26 | 66 | 85 | 44 | 48 | 1/2″x1/2″ | 90 | 5900308742617 | 0,189 |
| ZK.C20T | 1,0 | G3/4 | G1/2 | 26 | 66 | 85 | 44 | 48 | 1/2″x3/4″ | 90 | 5900308742624 | 0,215 |
