Aprašymas
Material: nickel-plated brass
10-year warranty

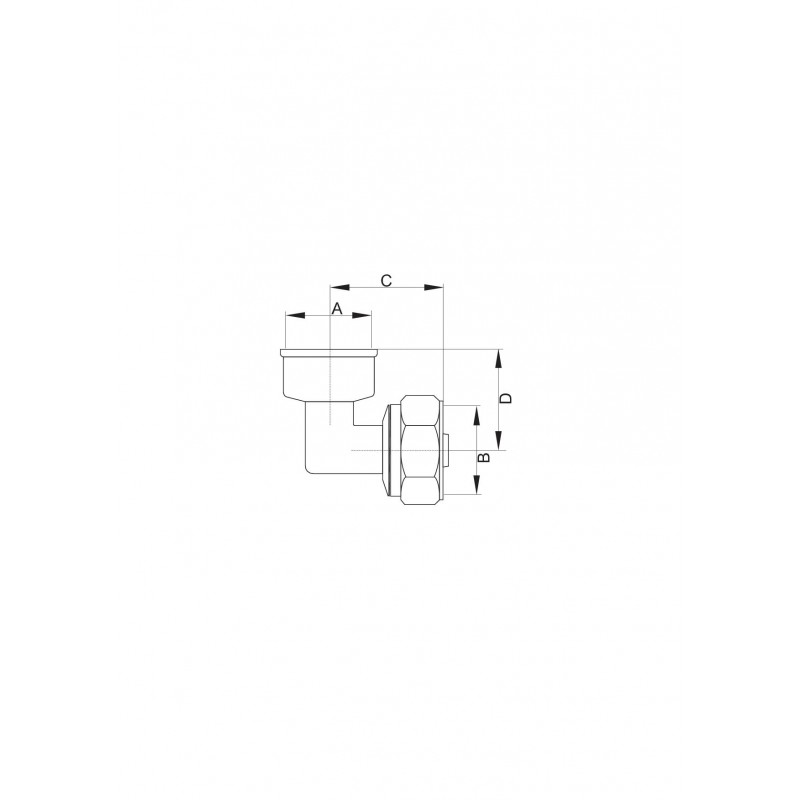

| INDEX | A [inch] | B [mm] | C [mm] | D [mm] | Size | Collective packaging [pcs] | EAN code | Net weight (kg) |
| PEX.K.GW16x1/2 | G1/2 | 18,5 | 33 | 28 | 16 x 1/2″ | 10/150 | 5900308747872 | 0,080 |
| PEX.K.GW16x3/4 | G3/4 | 24 | 37 | 28 | 16 x 3/4″ | 10/150 | 5900308747896 | 0,085 |
| PEX.K.GW20x1/2 | G1/2 | 18,5 | 34 | 33 | 20 x 1/2″ | 10/150 | 5900308747902 | 0,102 |
| PEX.K.GW20x3/4 | G3/4 | 24 | 35 | 32 | 20 x 3/4″ | 10/100 | 5900308747926 | 0,120 |
| PEX.K.GW25x3/4 | G3/4 | 24 | 41 | 32 | 25 x 3/4″ | 10/100 | 5900308747957 | 0,161 |
| PEX.K.GW25x1 | G1 | 30 | 43 | 38 | 25 x 1″ | 10/85 | 5900308747940 | 0,186 |
