Aprašymas

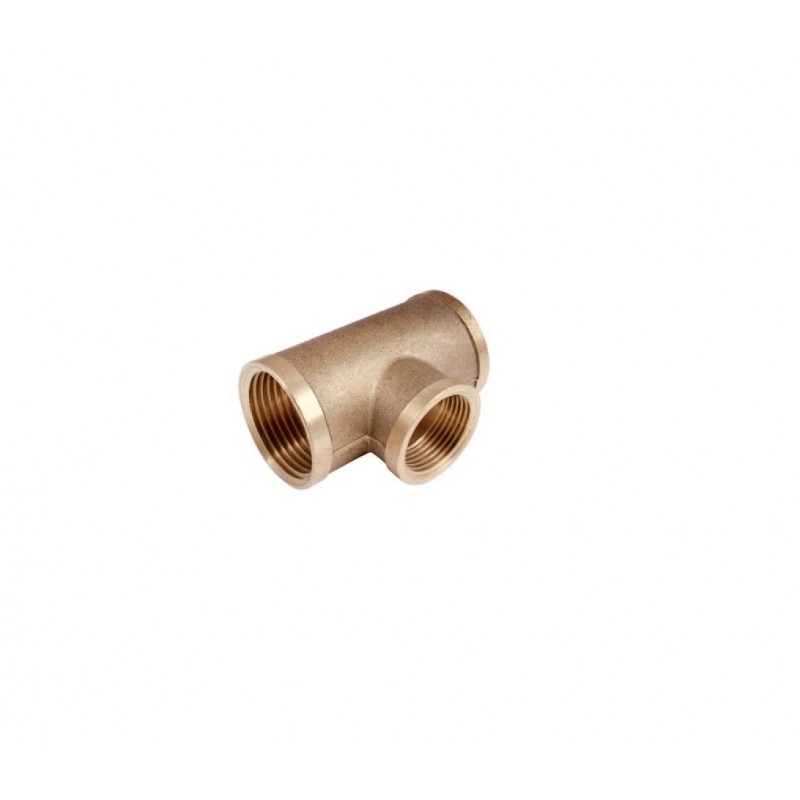

Destined for installation in water supply systems and central heating installations.
Maximum temperature: 100⁰C
Maximum pressure: 1,0 MPa
Material: brass
2-year warranty

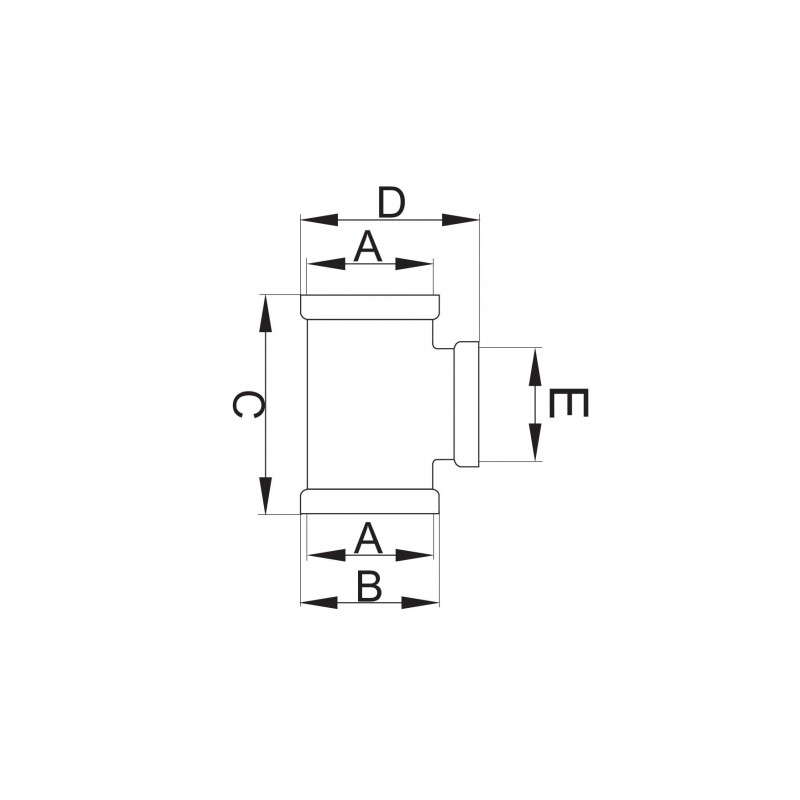

| INDEX | A [inch] | E [inch] | B [mm] | C [mm] | D [mm] | Size | Collective packaging [pcs] | EAN code | Net weight (kg) |
| MO.TR.20-15-20 | G3/4 | G1/2 | 32 | 57 | 44 | 3/4″x1/2″x3/4″ | 8/80 | 5900308745984 | 0,132 |
| MO.TR.25-15-25 | G1 | G1/2 | 38 | 65 | 49 | 1″x1/2″x1″ | 5/50 | 5900308746059 | 0,175 |
| MO.TR.25-20-25 | G1 | G3/4 | 38 | 64 | 49 | 1″x3/4″x1″ | 5/50 | 5900308746066 | 0,180 |
