Aprašymas

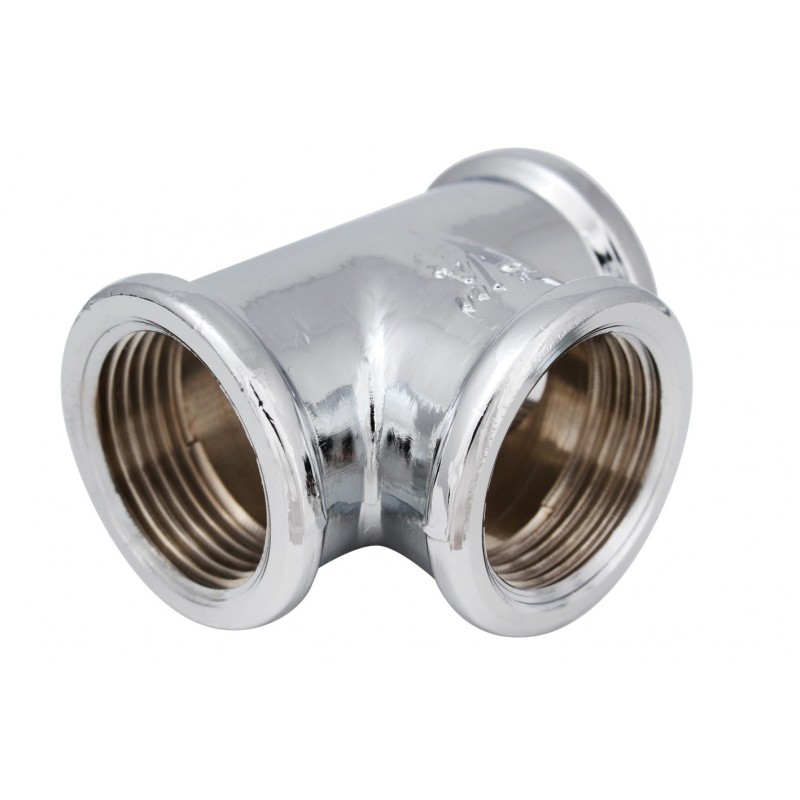

Destined for installation in water supply systems and central heating installations.
Maximum temperature: 100⁰C
Maximum pressure: 1,0 MPa
Material: brass
2-year warranty
| INDEX | A [inch] | B [mm] | C [mm] | D [mm] | Size | Collective packaging [pcs] | EAN code | Net weight (kg) |
| CH.T.10 | G3/8 | 22 | 35 | 28 | 3/8″ | 15/300 | 5900308732847 | 0,045 |
| CH.T.15 | G1/2 | 26 | 45,5 | 36 | 1/2″ | 18/180 | 5900308732854 | 0,069 |
| CH.T.20 | G3/4 | 34 | 52 | 44 | 3/4″ | 9/90 | 5900308732878 | 0,127 |
