Aprašymas
Parameters:
– nominal pressure 25 bar
– maximum working temperature 120⁰C
– working media: hot and cold water for water supply and central heating systems

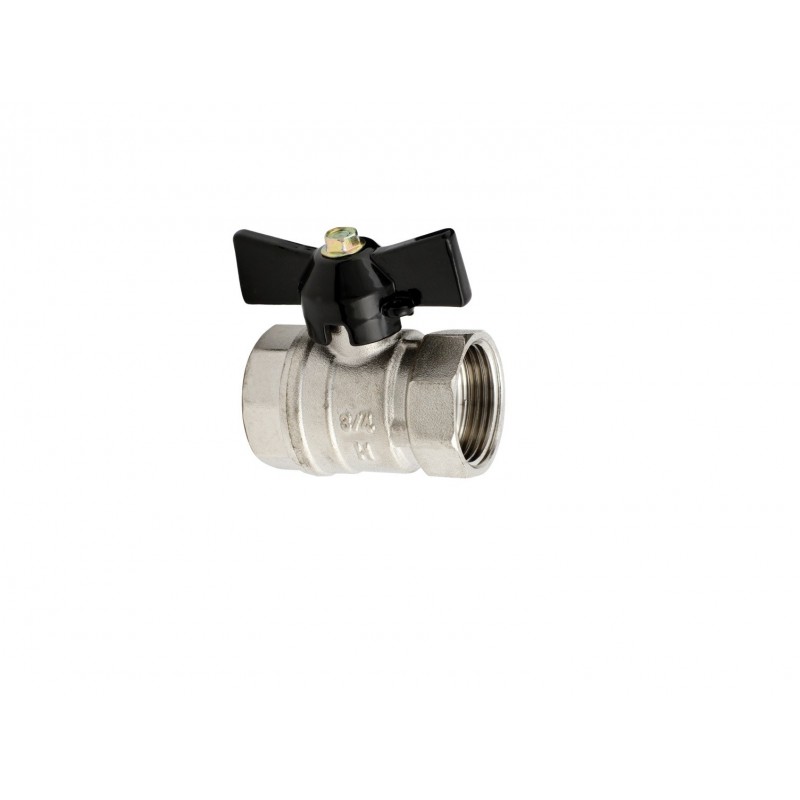

Execution:
– body made of brass
– chrome-plated ball made of brass with PTFE Teflon seal (only 1/4 turn is required to close the valve)
– PVC coated steel lever
– a compression nut enabling compensation of clearances
– nickel-plated surface

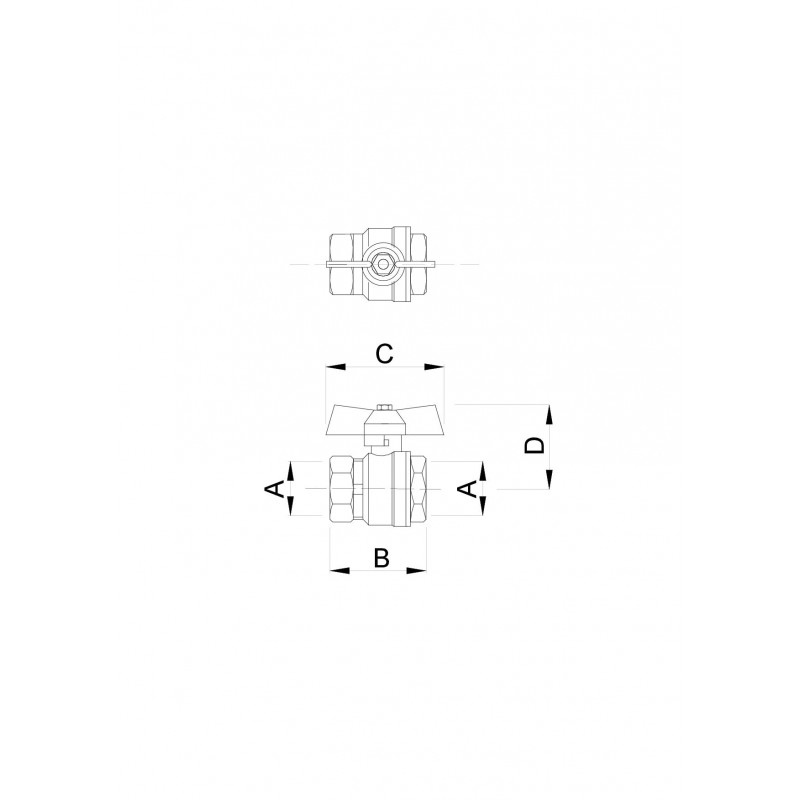

| INDEX | DN | Ball bore diameter [mm] |
P [Mpa] |
A [inch] |
B [mm] |
C [mm] |
D [mm] |
Size | Collective packaging [pcs] |
EAN code | Net weight (kg) |
| ZKWMD-15 | 15 | 12 | 2,5 | G1/2 | 42 | 49 | 36,5 | 1/2″ | 20/200 | 5900308732502 | 0,102 |
| ZKWMD-20 | 20 | 15 | 2,5 | G3/4 | 47 | 49 | 40 | 3/4″ | 14/140 | 5900308732519 | 0,161 |
| ZKWMD-25 | 25 | 20 | 2,5 | G1 | 54 | 61 | 50,5 | 1″ | 8/80 | 5900308732526 | 0,244 |
