Aprašymas
Destined for installation in water supply systems and central heating installations.
Maximum temperature: 100⁰C
Maximum pressure: 1,0 MPa
Material: brass
2-year warranty

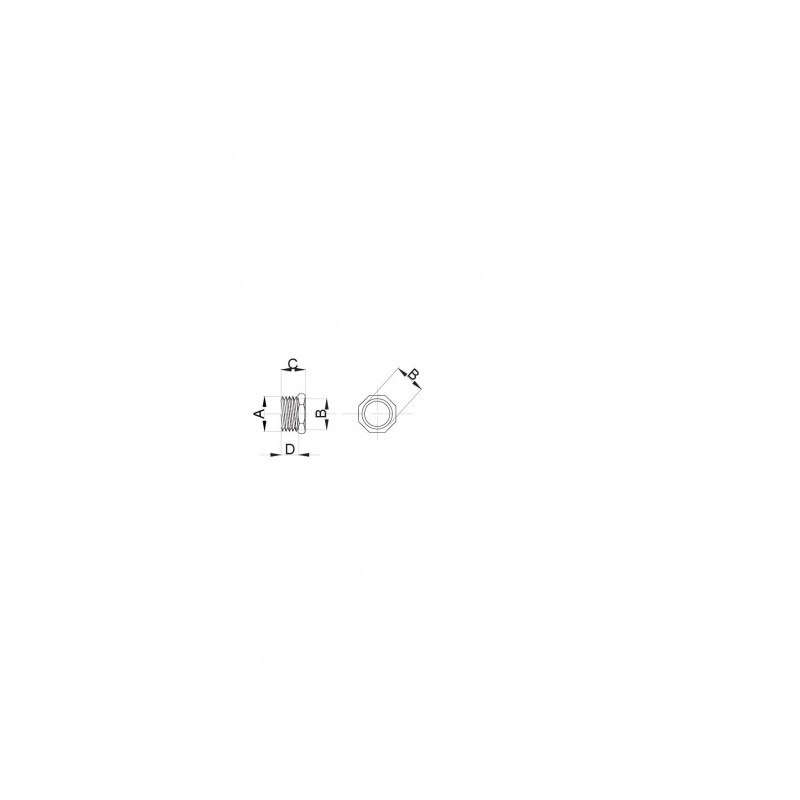

| INDEX | A [inch] | B [inch] | C [mm] | D [mm] | Size | Collective packaging [pcs] | EAN code | Net weight (kg) |
| CH.R.15-10 | G1/2 | G3/8 | 15 | 9 | 1/2″x3/8″ | 40/800 | 5900308732816 | 0,017 |
| CH.R.20-15 | G3/4 | G1/2 | 15 | 9 | 3/4″x1/2″ | 25/500 | 5900308732823 | 0,027 |
| CH.R.25-20 | G1 | G3/4 | 17 | 12 | 1″x3/4″ | 20/200 | 5900308732830 | 0,050 |
