Aprašymas

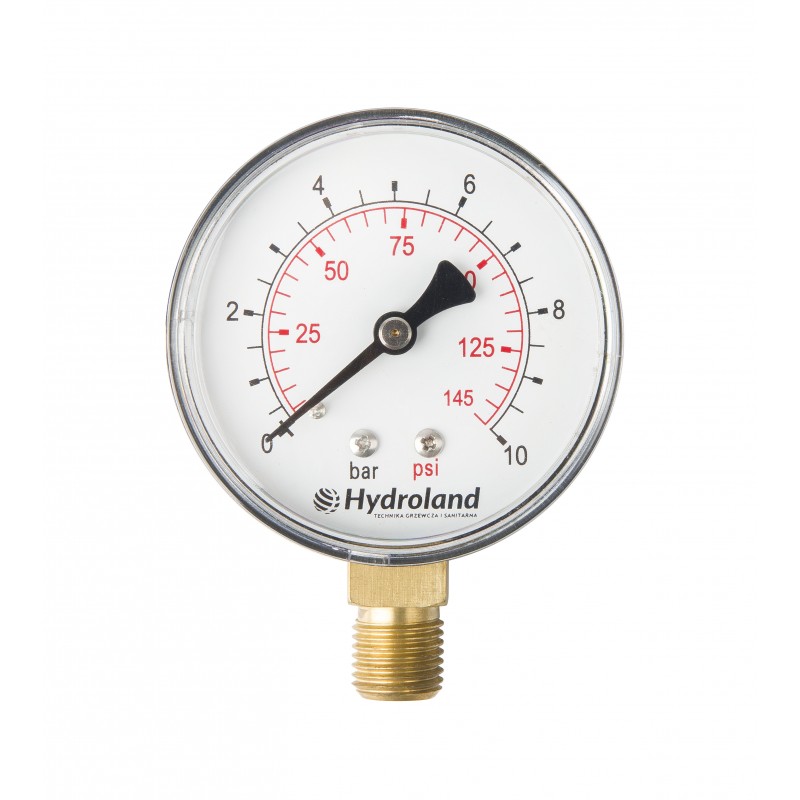

Spring-type pressure gauge with Bourdon tube.
Housing material: ABS
Cover: acrylic
Shield: aluminum
Tip: aluminum
Shield diameter: 63 mm
Accuracy class: 2,5
Connection: 1/4″ rear (radial)
2-year warranty
| INDEX | Operating range | Collective packaging [pcs] | EAN code | Waga netto (kg) |
| MAN.1/4 1,6 B | 0 – 1,6 bar | 1 | 5900308749845 | 0,090 |
| MAN.1/4 2,5 B | 0 – 2,5 bar | 1 | 5900308749869 | 0,0893 |
| MAN.1/4 4 B | 0 – 4 bar | 1 | 5900308749876 | 0,0895 |
| MAN.1/4 6 B | 0 – 6 bar | 1 | 5900308749883 | 0,089 |
| MAN.1/4 10 B | 0 – 10 bar | 1 | 5900308749852 | 0,080 |
