Aprašymas

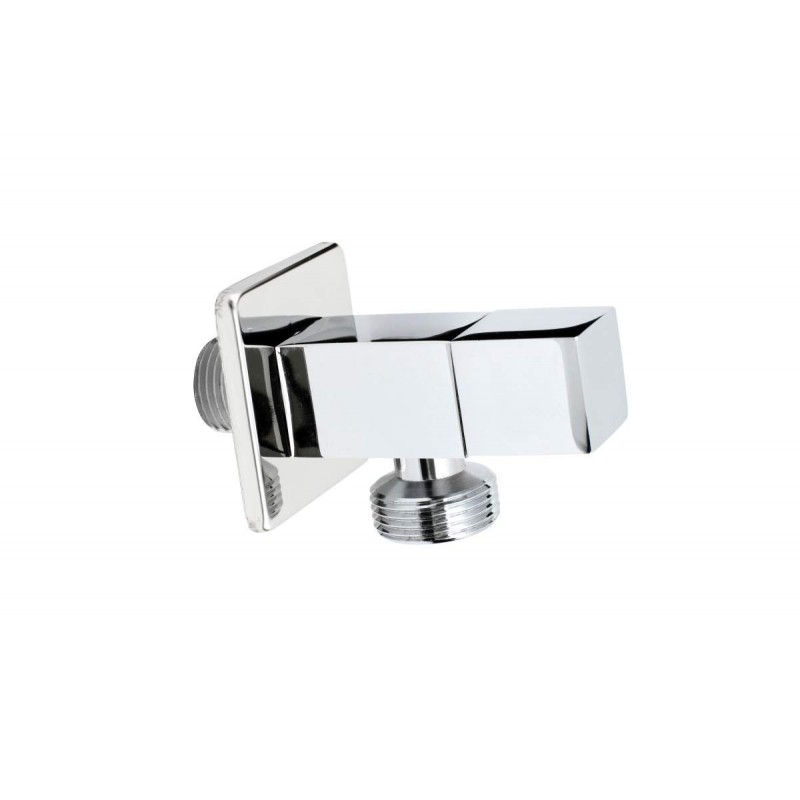

Destined for opening and closing a water flow in water supply systems.
Parameters:
– nominal pressure 10 bar
– maximum operating temperature 100⁰C
– working media: hot and cold water in water supply systems
– made of brass with a chrome coating
– a declaration of conformity is issued for all valves
– the valves have a hygienic certificate issued by the National Institute of Hygiene
2-year warranty

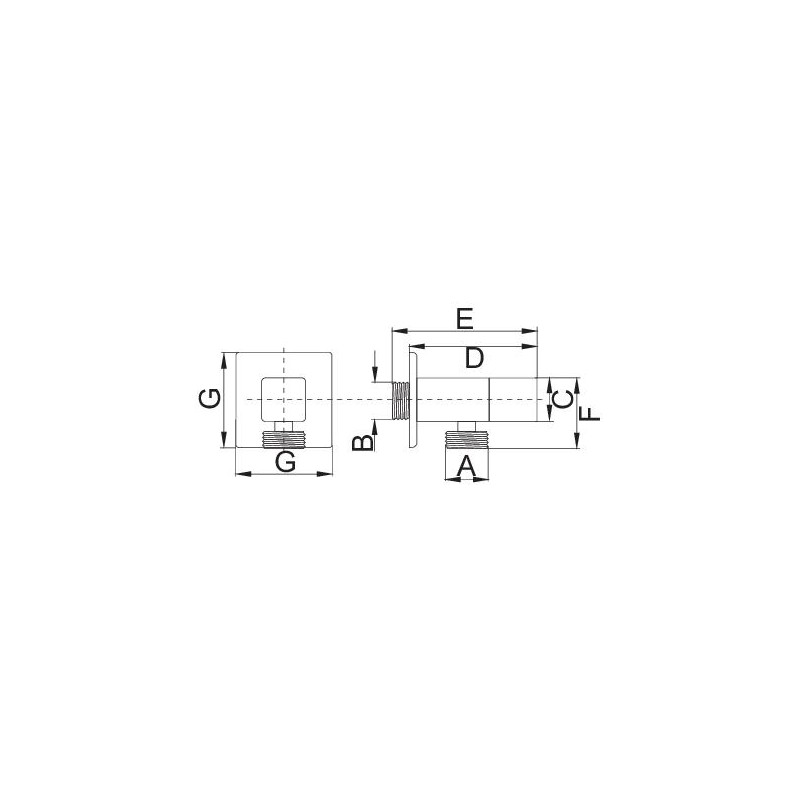

| INDEX | P [Mpa] |
A [inch] |
B [inch] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
G [mm] |
Size | Collective packaging [pcs] |
EAN code | Net weight (kg) |
| ZK.C10K | 1,0 | G3/8 | G1/2 | 23 | 64 | 86 | 42 | 50 | 1/2″x3/8″ | 90 | 5900308742570 | 0,227 |
| ZK.C15K | 1,0 | G1/2 | G1/2 | 23 | 64 | 86 | 42 | 50 | 1/2″x1/2″ | 90 | 5900308742556 | 0,228 |
| ZK.C20K | 1,0 | G3/4 | G1/2 | 23 | 64 | 86 | 42 | 50 | 1/2″x3/4″ | 90 | 5900308742563 | 0,253 |
