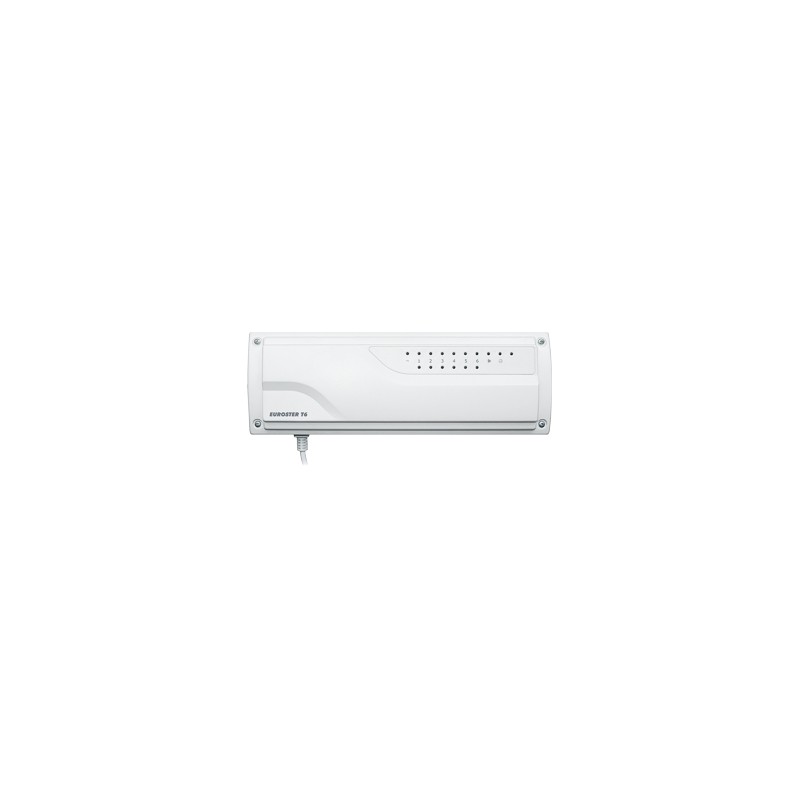

Designed to operate on the underfloor heating installations.
It controls the actuators mounted on the floor manifold and has the option to turn off the boiler and the circulation pump if all heating circuits are off.
Works with Euroster room regulators and electrothermal actuators 230V normally closed (NC).
| Device controlled | valve actuators, pump and central heating boiler |
| Supply voltage | 230 V 50 Hz |
| Maximum load (sum) | 3 A 230 V 50 Hz |
| Maximum power consumption | 1,7 W |
| Visual signaling | LED diodes |
| Working temperature | from +5°C to +40°C |
| Storage temperature | from 0°C to +65°C |
| Protection class | IP 40, II protection class |
| Colour | white |
| Mounting method | wall mounting, expansion pins or DIN rail |
| Weight of the module with the power cord | 356 g |
| Standards, approvals, certificates | compliance with EMC i LVD and ROHS directives |
| Warranty period | 2 years |
| Dimensions (width/height/depth) mm | 270/97/50 |
| Set includes | T6 module with power cord, expansion pins, manual |
