Aprašymas

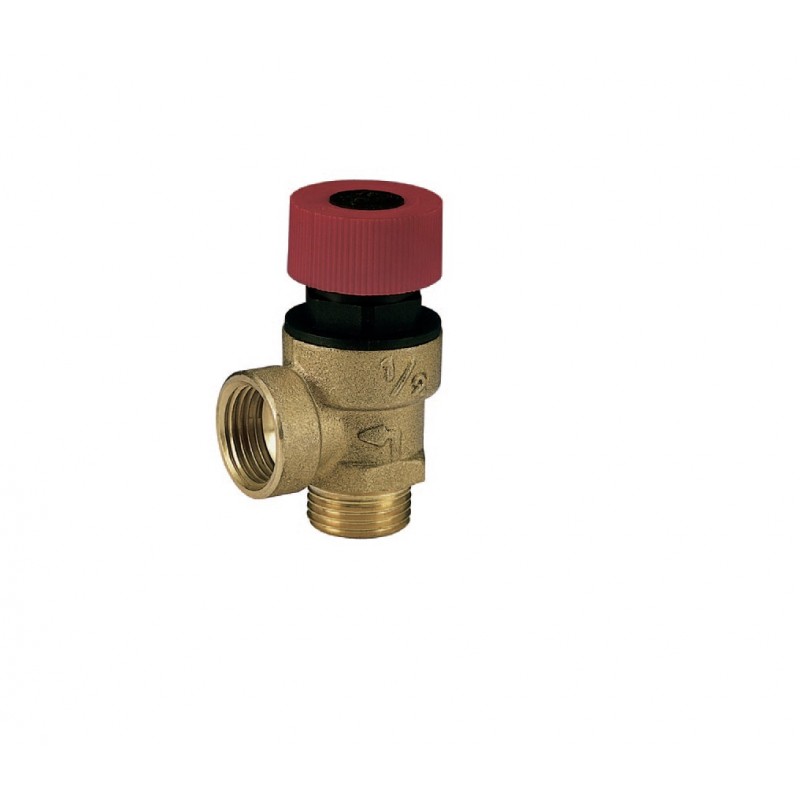

Designed to protect central heating installations against excessive pressure build-up
Parameters:
– maximum working pressure 10 bar
– working temperature range: 0-110°C
– opening pressure: 10% of nominal pressure value
– closing pressure: 20% of nominal pressure value (min. 0,6 bar)
Material: brass
2-year warranty

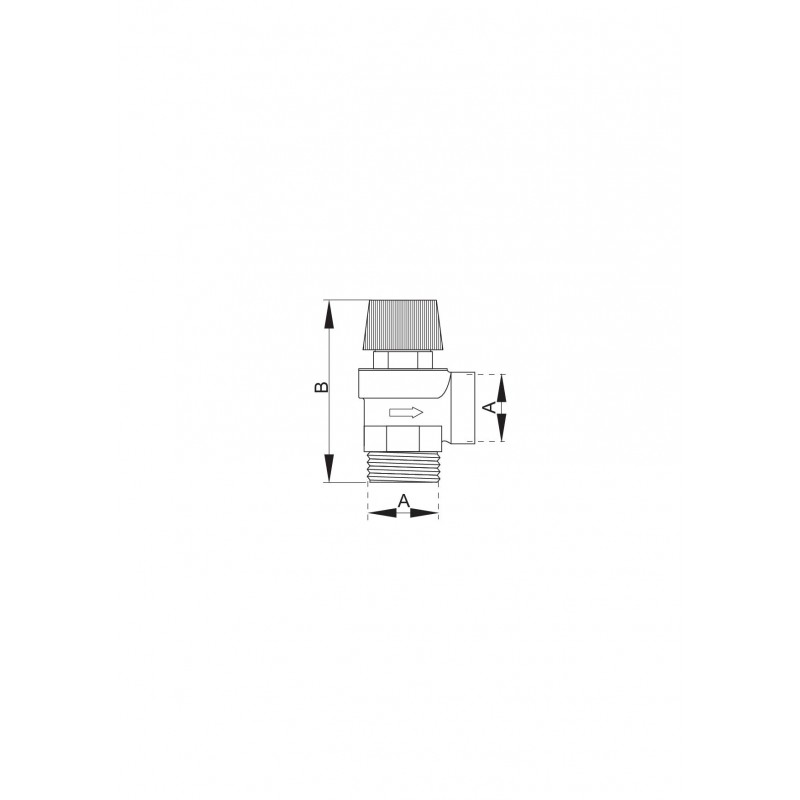

| INDEX | A [inch] | B [mm] | Operating range | Collective packaging [pcs] | EAN code | Net weight (kg) |
| Z.B15-3-NW | 1/2″ | 67 | 3 bar | 10 | 5900308747537 | 0,105 |
| Z.B15-6-NW | 1/2″ | 68 | 6 bar | 10 | 5900308747544 | 0,108 |
